FERMENTING DRUMS

High-capacity SS fermenting drums for orthodox and CTC tea processing.

SS 304
Food Grade
6ft × 24ft
Drum Size
3 HP
Drive Motor
Multi
Drum Lines

Product Overview

SS 304 food grade drums with internal flights on pedestal frame — single units or multi-drum lines for high-capacity tea fermentation.High-capacity SS fermenting drums for orthodox and CTC tea processing

🍃

Description

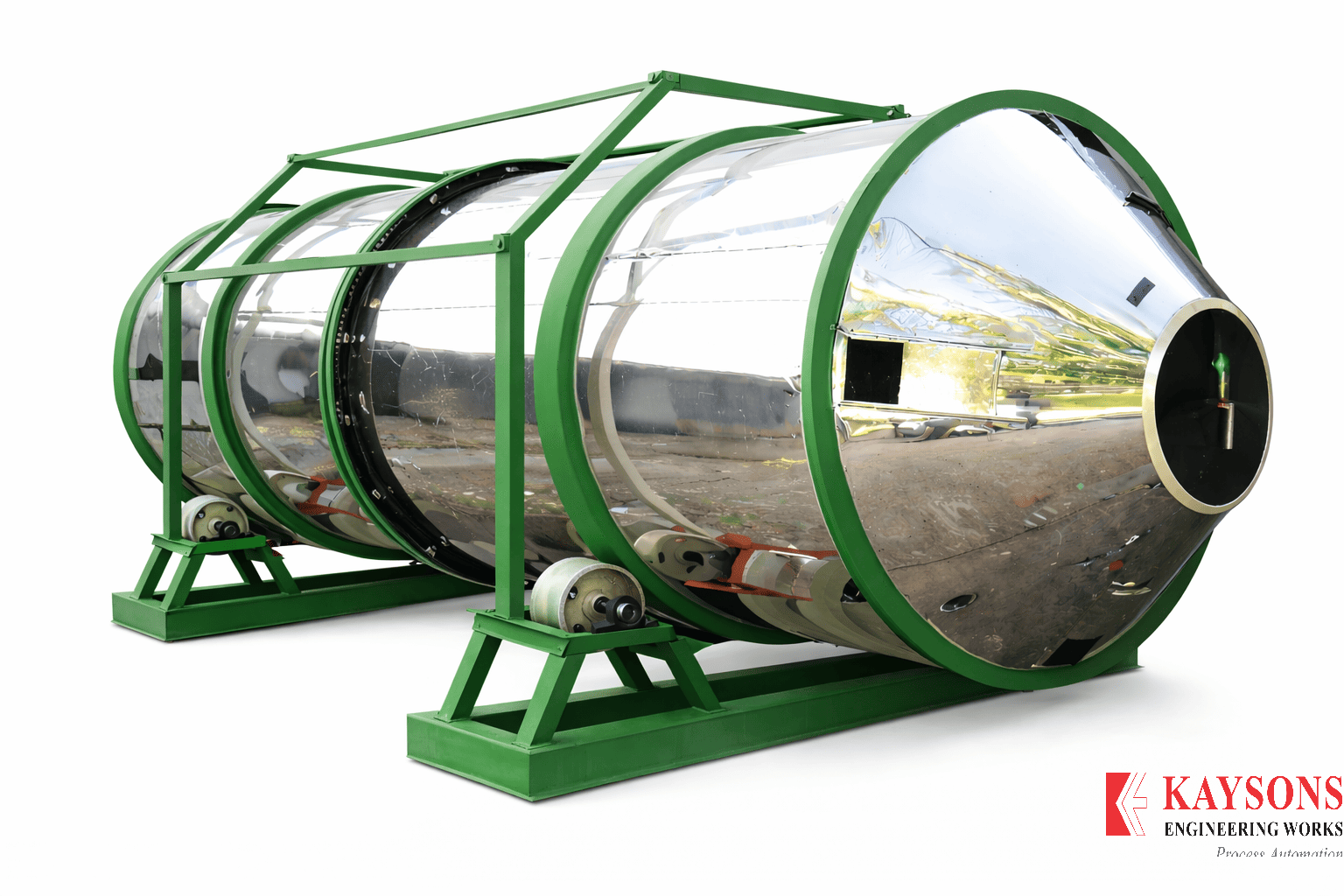

Kaysons fermenting drums are constructed from 1.5 mm SS 304 food grade (16G) stainless steel with internal flights that tumble the tea leaf for even, consistent fermentation throughout the drum.

Each drum is mounted on a heavy-duty pedestal frame with guide rollers and driven by a chain drive system through a Shanthi/Greaves gear box, available in single or multi-drum line configurations.

📐

Technical Specifications

Material SS 304 Food Grade
Sheet Thickness 1.5 mm (16G)
Drum Diameter 6 ft (1830 mm)
Drum Length 24 ft (7315 mm)
Internal Flights Yes — for leaf tumbling
Drive Motor 3 HP / 960 RPM
Gear Box Shanthi / Greaves
Drive Type Chain Drive
✅

Key Features

  • SS 304 mirror-finish construction Food Grade
  • Internal flights for uniform leaf tumbling
  • Heavy-duty pedestal frame with guide rollers
  • Reliable chain drive via Shanthi/Greaves gearbox

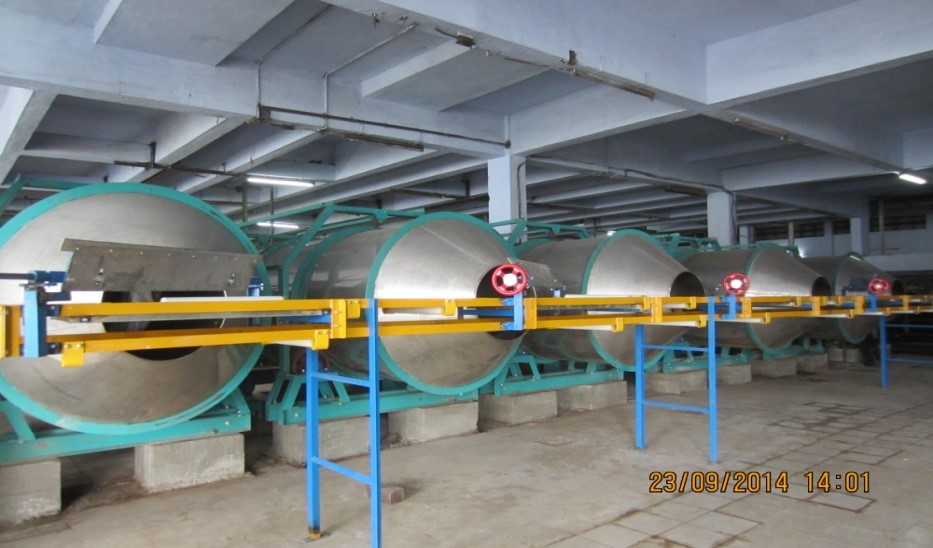

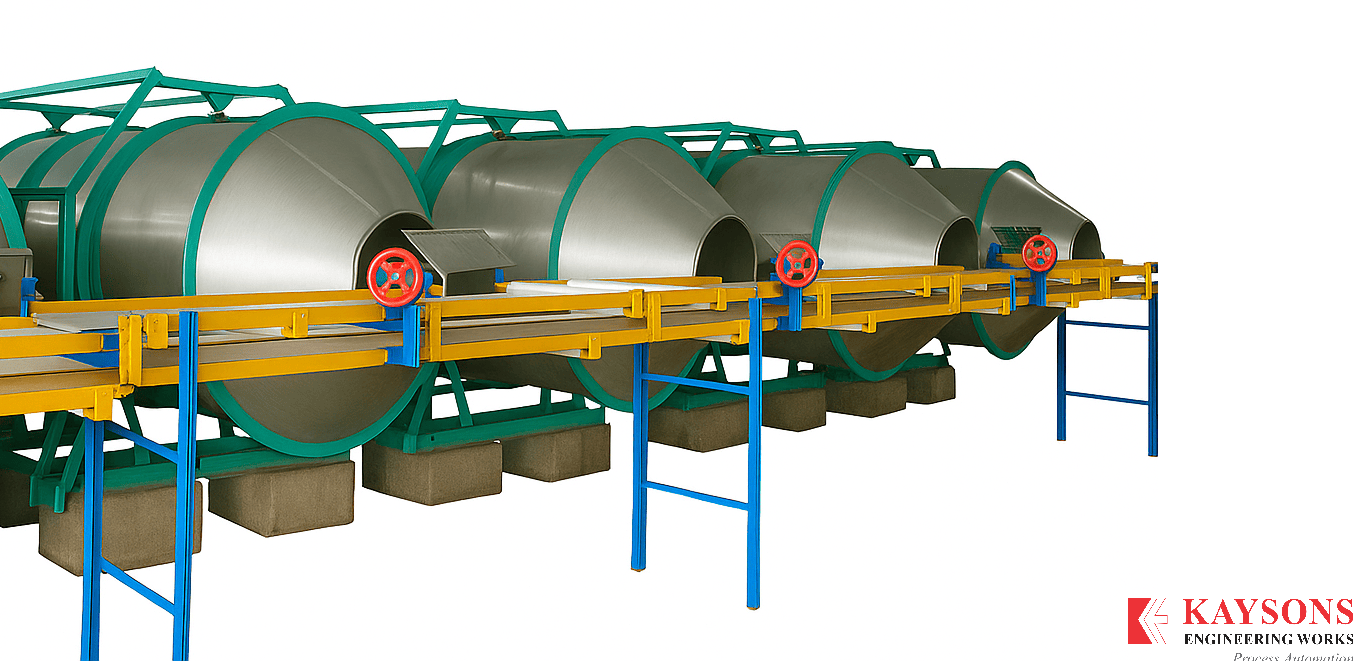

  • Available in single drum or multi-drum lines
  • Yellow conveyor rail system for multi-drum setups
  • Collection bins below each drum for discharge

Need a Fermenting Drum for Your Tea Factory?

Contact our team for drum size, number of units, drive specifications, and custom fermenting line configurations.
