Description

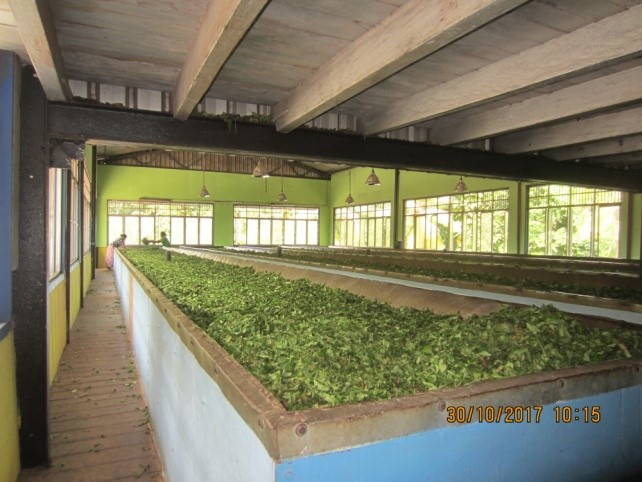

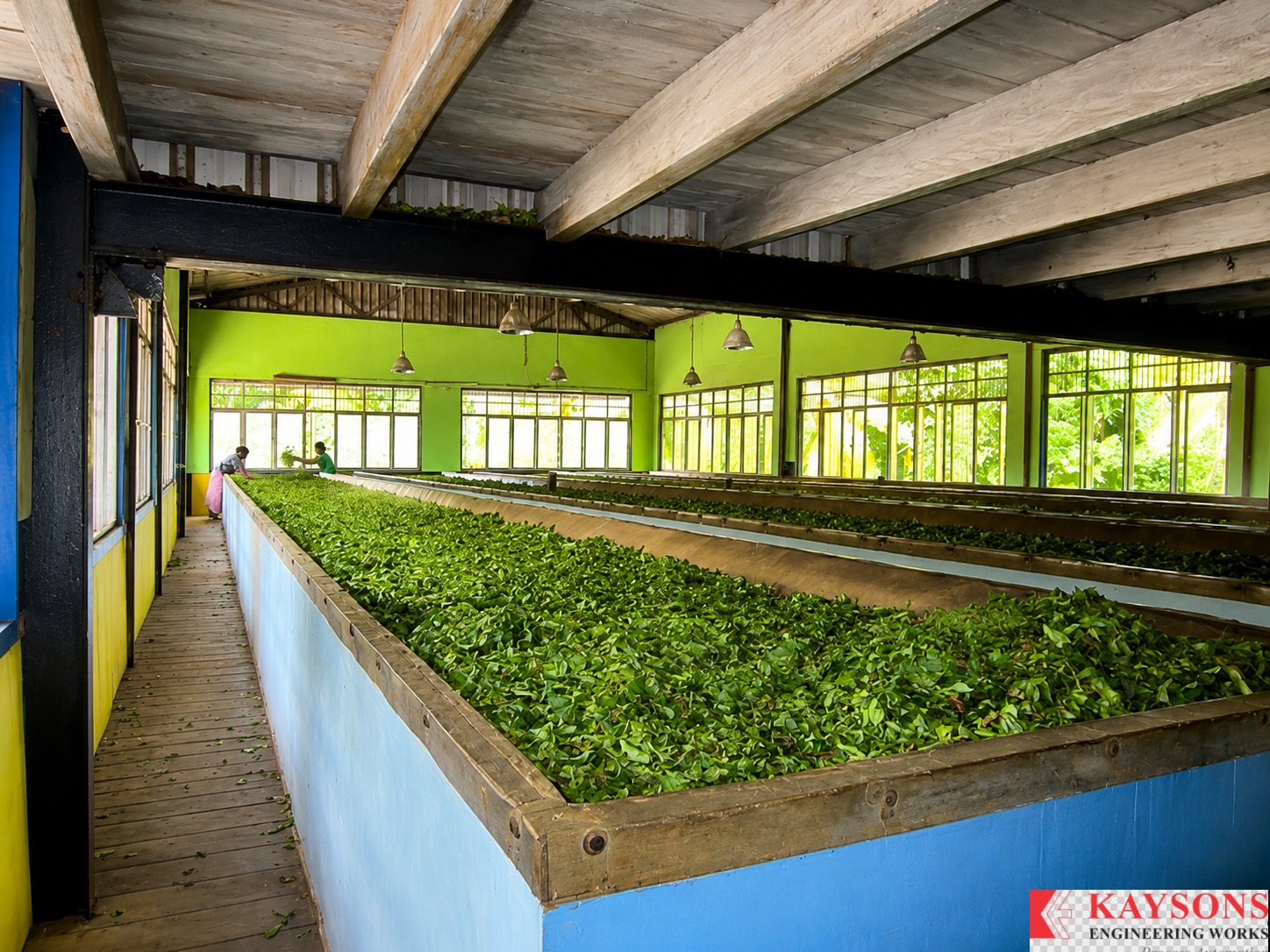

The Kaysons Withering Trough is a 6 ft wide × 70 ft long fixed trough designed for green leaf withering in orthodox tea factories. The trough body is built on an angular MS framework and covered with weld mesh and wire mesh to allow maximum airflow through the leaf bed.

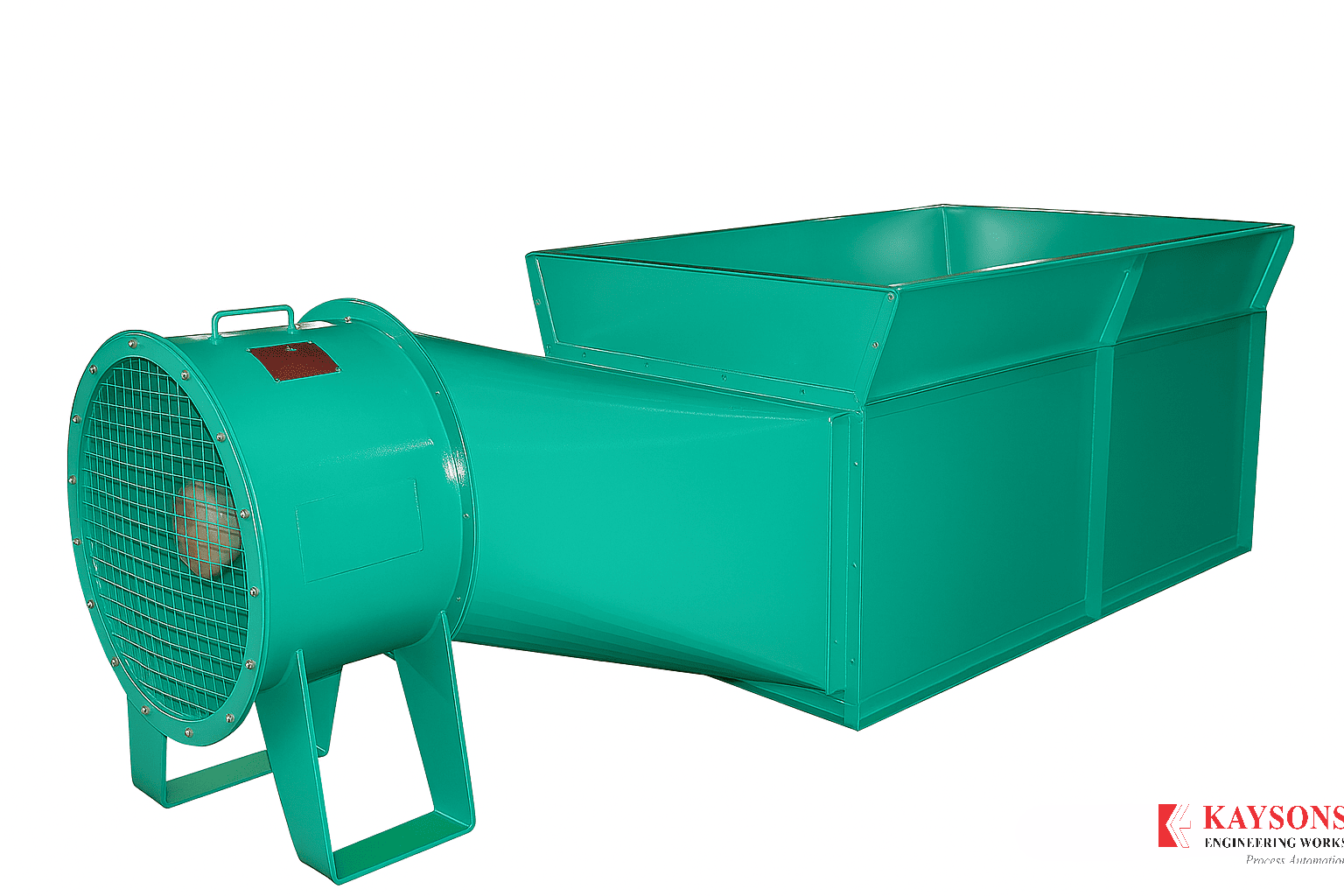

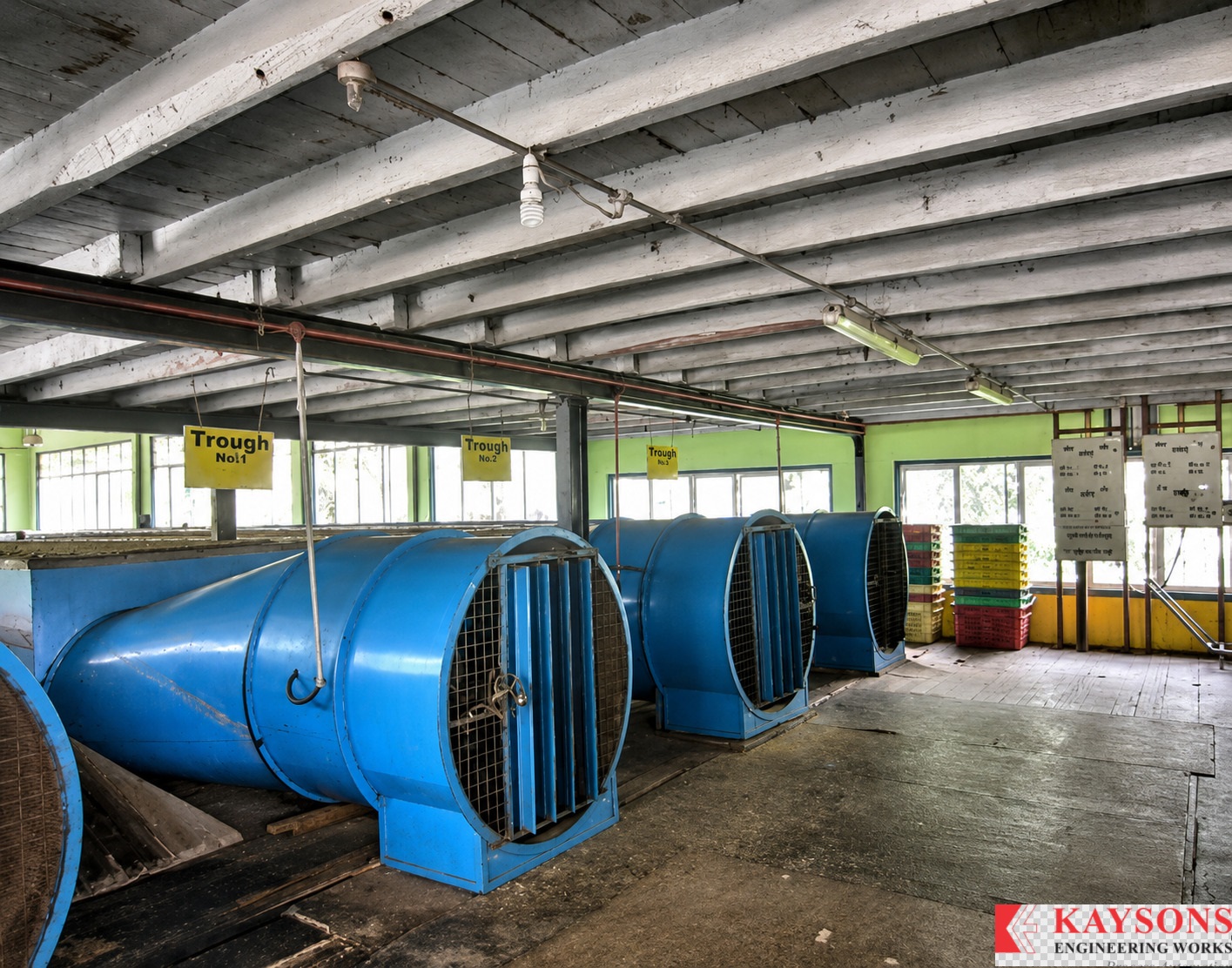

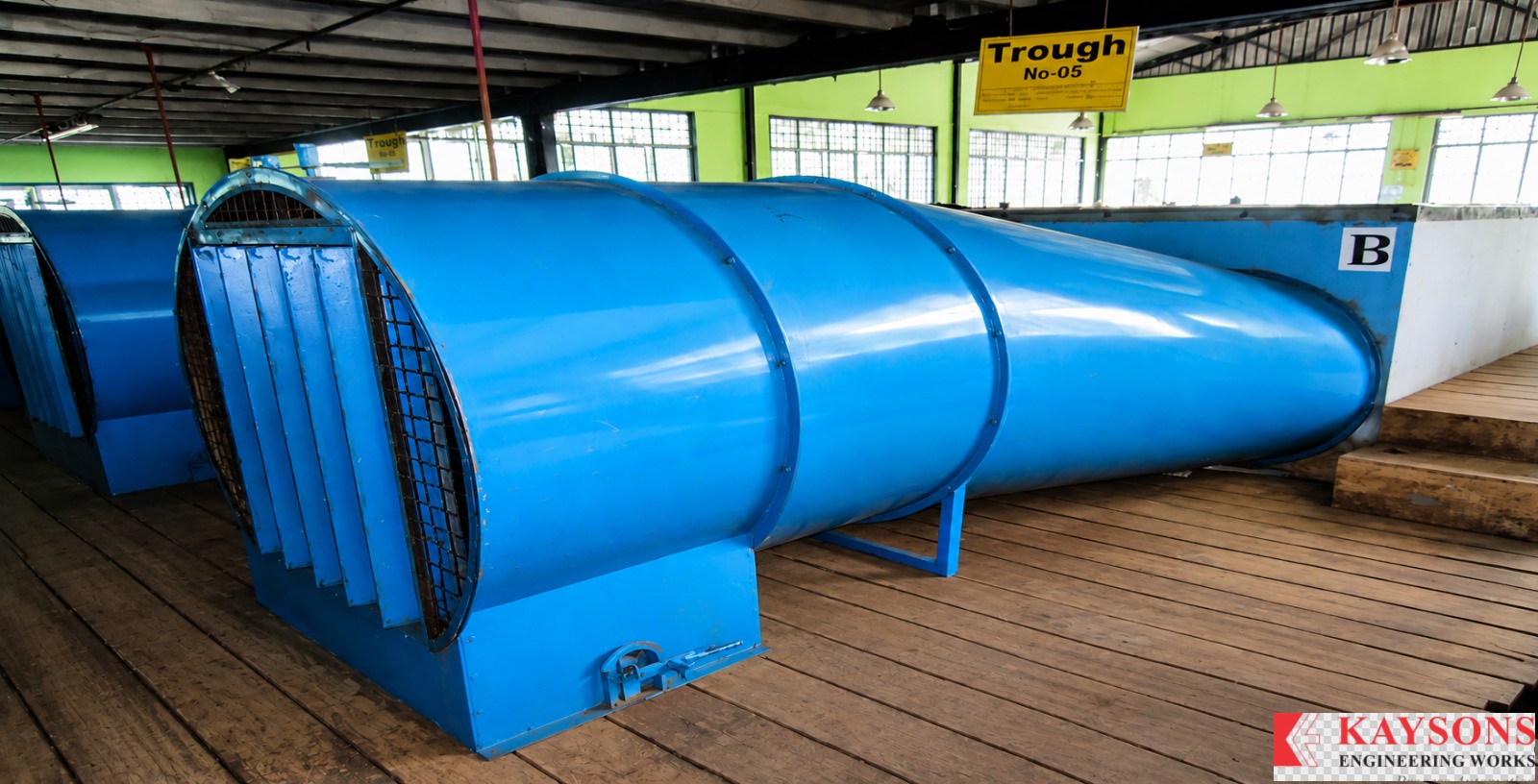

Twin 1000 mm axial flow fans with round-to-rectangle transition pieces deliver uniform forced air across the full trough width, ensuring consistent withering results across every batch.

Technical Specification

• Size — 6 ft wide × 70 ft long 420 sq ft
• Body — Angular MS frame with weld mesh & wire mesh cover MS
• Axial flow fan — 1000 mm diameter 1000 mm
• Fan motor — 3 HP per unit 3 HP
• Number of fans — 2 Nos (one per section)
• Transition piece — Round-to-rectangle, fan to trough
• Leaf capacity — 420 sq ft @ 2.5 kg/sq ft = 420 kg green leaf 420 kg

Key Features

• High-capacity 420 kg green leaf withering bed
• Open mesh body for maximum forced-air penetration
• Twin 1000 mm axial fans for even air distribution
• Angular MS frame — robust factory construction
• Round-to-rectangle transition duct for efficient fan coupling
• Suitable for both orthodox and semi-orthodox tea
• Low energy 3 HP motors per fan unit
