SIFTING ROOM MACHINERIES

sifting Room Machineries

3
Machine Types
4 Nos
Fibromat Rollers
2 HP
Motor Rating
440 V
3-Phase AC

Product Overview

Three specialist machines for complete sifting room operations — stalk extraction, fibre separation, and rotary sieving. Complete range of sifting room equipment — Myddleton stalk extractor, Fibromat roller assembly, and Rotary Sieve — for precise tea grade separation and fibre removal.

🌿

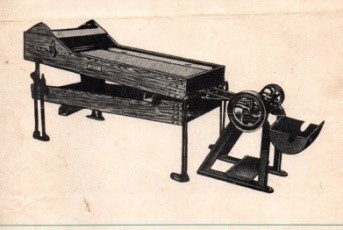

Myddleton Stalk Extractor

The Myddleton is a stalk extractor used in sifting room operations to separate stalks and fibrous material from made tea grades. It delivers efficient stalk extraction with minimal grade loss.

  • Purpose — stalk extraction from made tea
  • Power — 2 HP, 440 V, 3-phase AC 2 HP
  • Starter — suitable motor starter supplied
🔩

Fibromat

The Fibromat is a multi-roller fibre separation machine fitted with 4 rollers of 36"/48" size and 30 cm diameter. The rollers act on made tea to extract fibrous stalks, delivering clean grades.

  • Roller size — 36" / 48" 36"/48"
  • Number of rollers — 4 Nos 4 Nos
  • Roller diameter — 30 cm
  • Power — 2 HP, 440 V, 3-phase AC 2 HP
  • MS frame with adjustable roller pressure
  • Mesh belt conveyor for continuous feed
⚙️

Rotary Sieve

The Rotary Sieve (vibratory sifter) uses an eccentric flywheel drive mechanism to produce controlled vibration across twin mesh deck screens, separating tea grades by particle size with high throughput and accuracy.

  • Drive — eccentric flywheel mechanism
  • Deck screens — twin mesh screen decks
  • Frame — MS fabricated, painted
  • Adjustable screen angle for grade control
  • Suitable for all orthodox and CTC grades

Fibromat

Multi-roller fibre mat assembly — 4-roller system with mesh belt conveyor

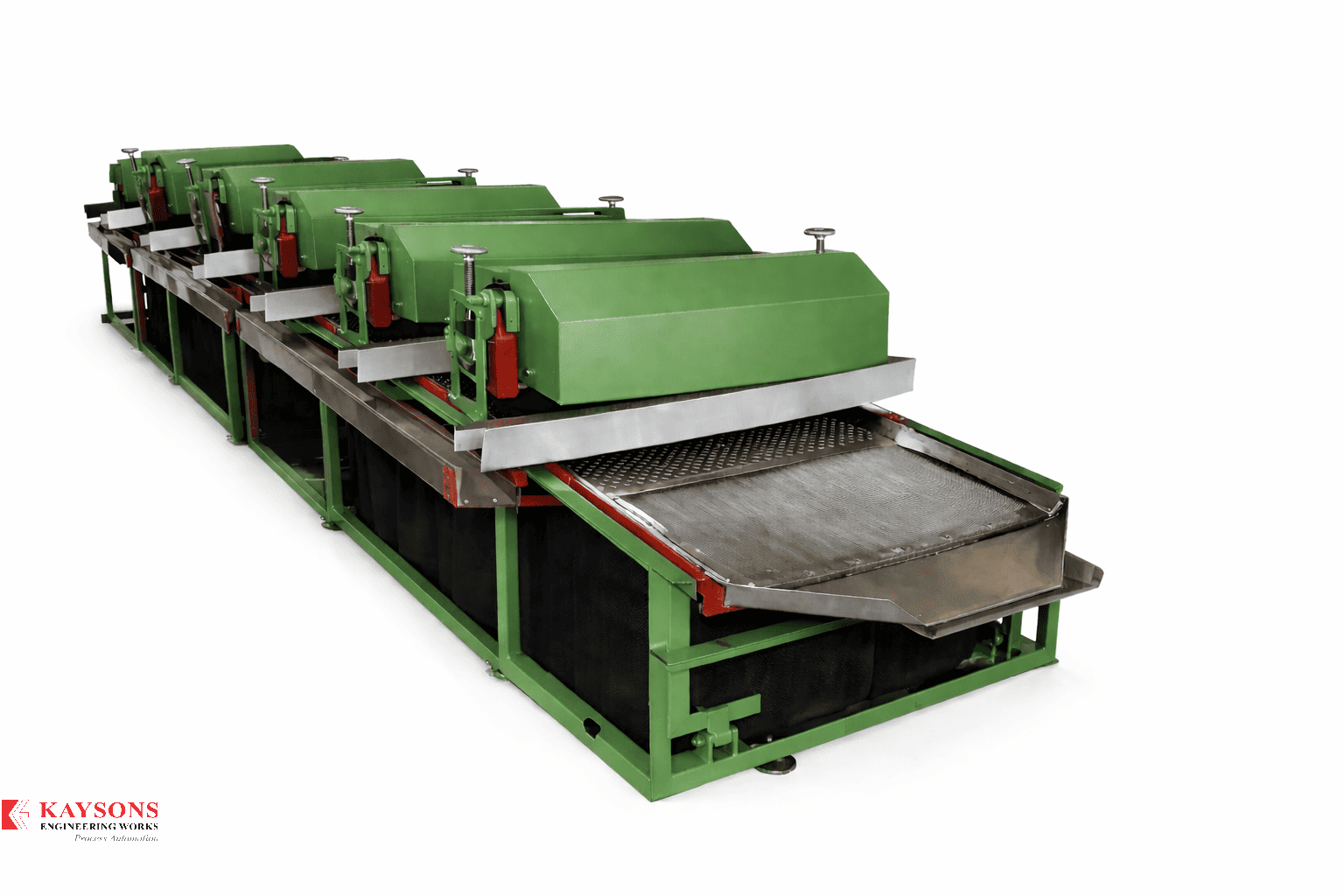

Kaysons Fibromat 4-Roller Assembly
🔍
Fibromat – 4-Roller Assembly
Kaysons Fibromat View 1
🔍
Fibromat – View 1
Kaysons Fibromat View 2
🔍
Fibromat – View 2

Rotary Sieve

Vibratory sieve with twin mesh deck screens and eccentric flywheel drive

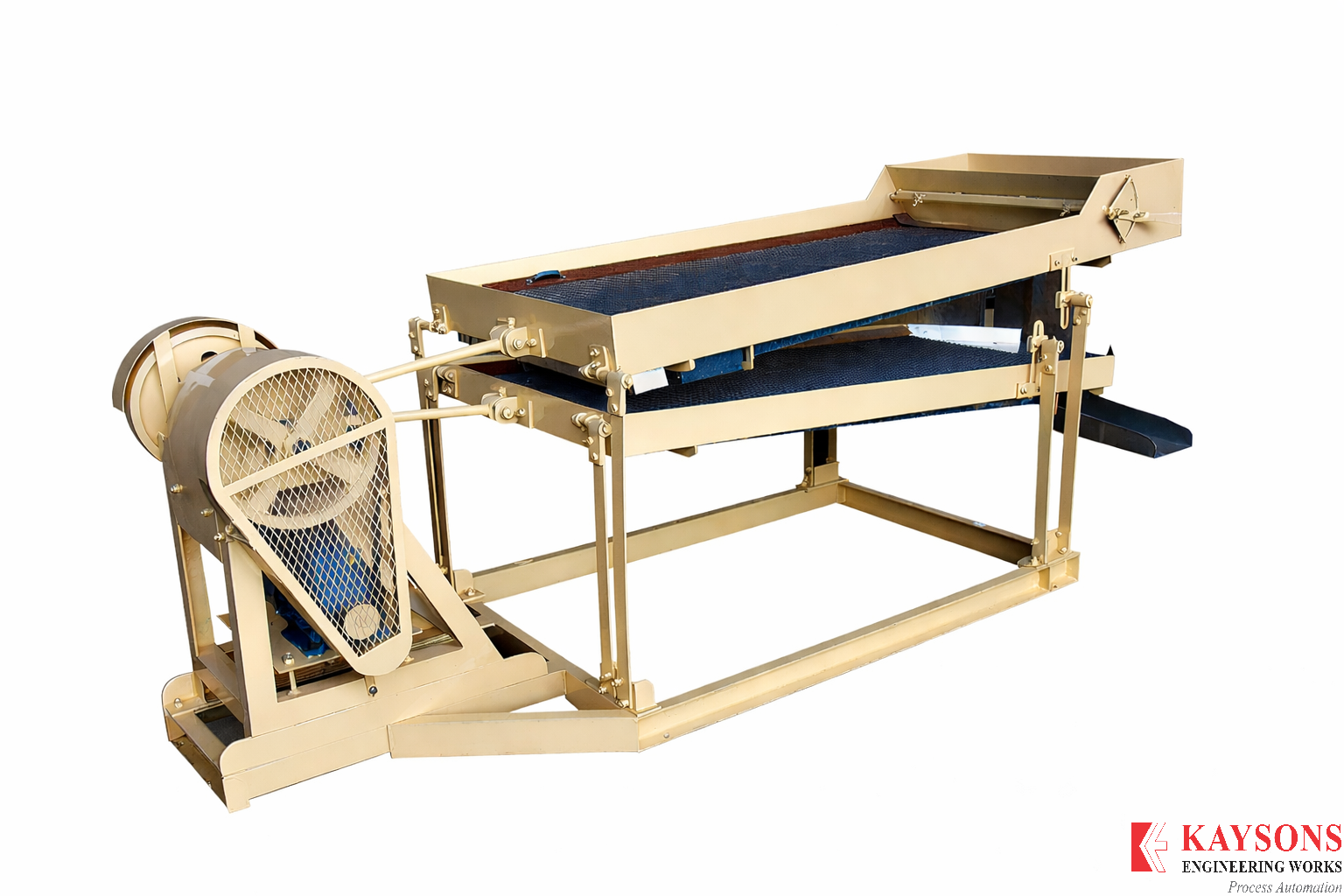

Kaysons Rotary Sieve Twin Mesh Deck Vibratory Sifter
🔍
Rotary Sieve – Twin Deck Vibratory Sifter
Kaysons Rotary Sieve Installed View
🔍
Rotary Sieve – Installed View

Equipping Your Sifting Room?

Contact our team for Myddleton, Fibromat, and Rotary Sieve specifications, supply & installation.
