Description

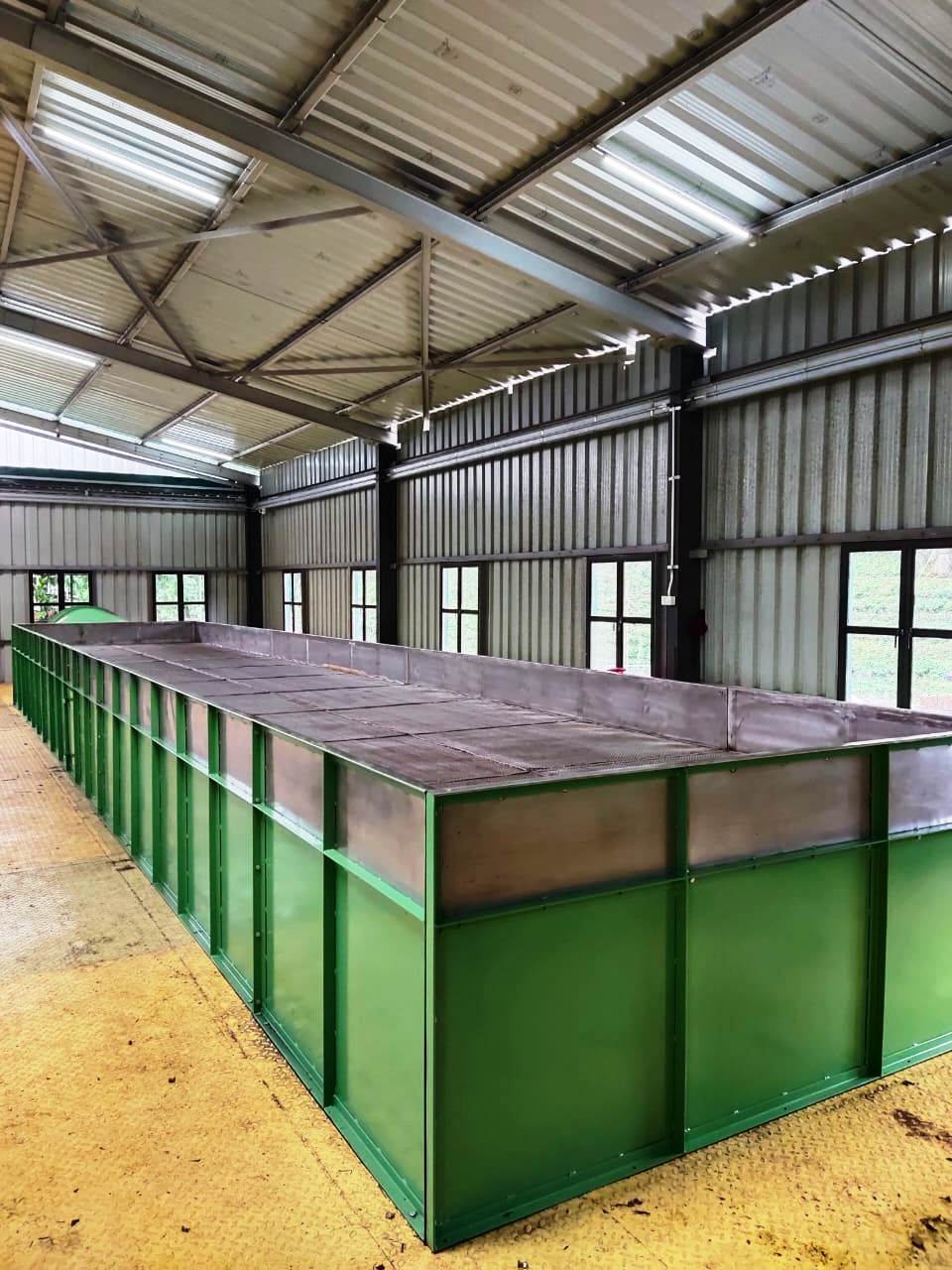

The Kaysons Fixed Withering Trough is a robust MS-frame structure designed for green leaf withering in orthodox tea factories. At 43 ft length and 8 ft width, it provides a large withering bed area for high-throughput operations.

The trough body is fabricated from mild steel with GI-sheet lined sides and a No. 3 SS 304 mesh floor that allows uniform forced-air passage through the leaf bed from below.

Technical Specification

• Trough body — Mild Steel construction MS
• Sides & floor — GI sheet lined with No. 3 SS 304 mesh SS 304
• Axial flow fan — 1200 mm diameter 1200 mm
• Fan static pressure — 12.5 mm WG
• Motor — 3 HP, 960 RPM, single speed 3 HP
• Airflow delivery — 21,000 CFM 21,000 CFM

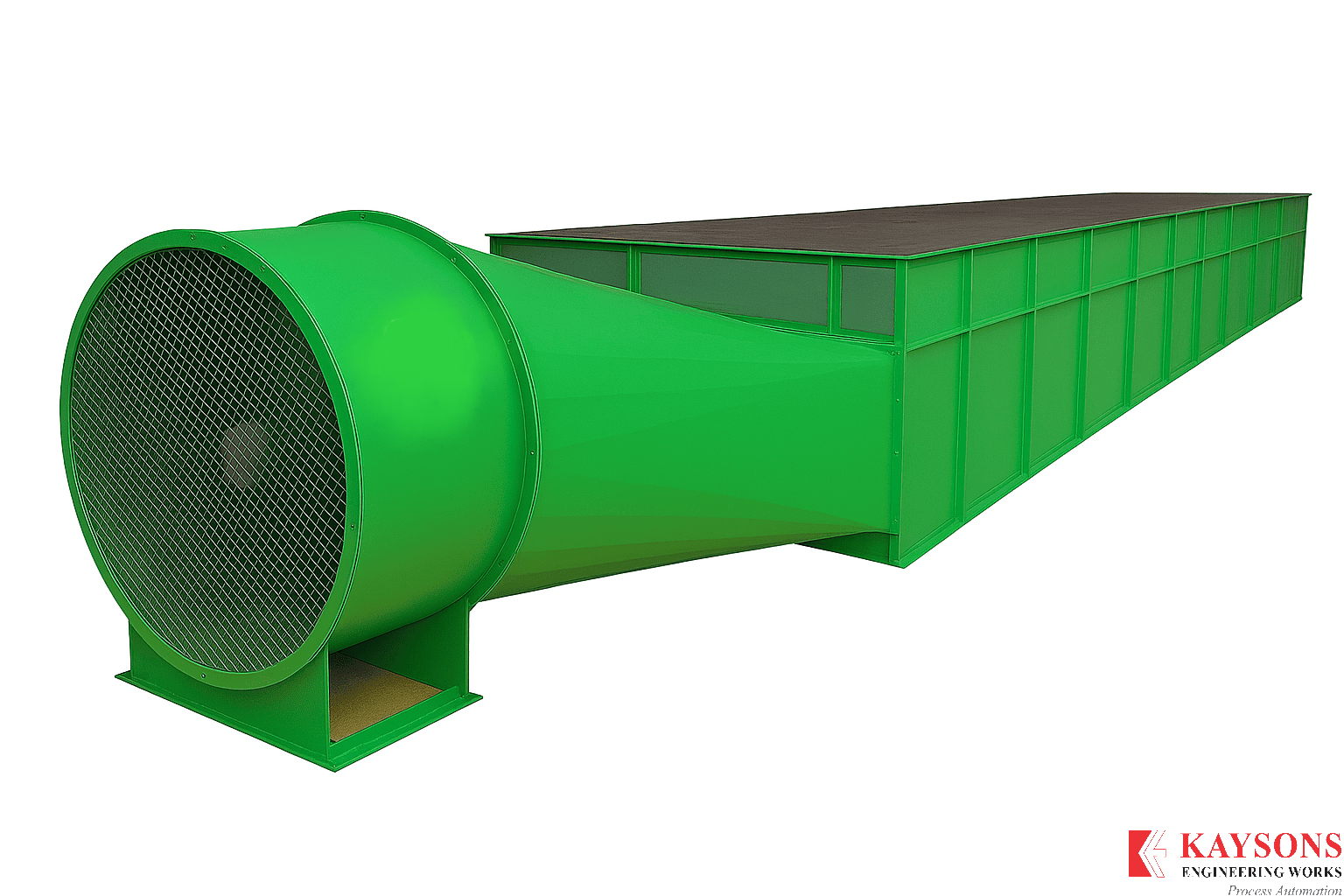

• Round-to-rectangle transition duct (fan to trough connection)

Key Features

• Large 43 ft × 8 ft withering bed area 344 sq ft
• SS 304 mesh floor for uniform air distribution
• High-volume axial flow fan — 21,000 CFM
• Single-speed 3 HP motor — low energy operation
• Transition duct for smooth fan-to-trough coupling
• Heavy-duty MS frame for long factory life
• Suitable for orthodox tea green leaf withering
