Kaysons Engineering Works

PULVERIZER

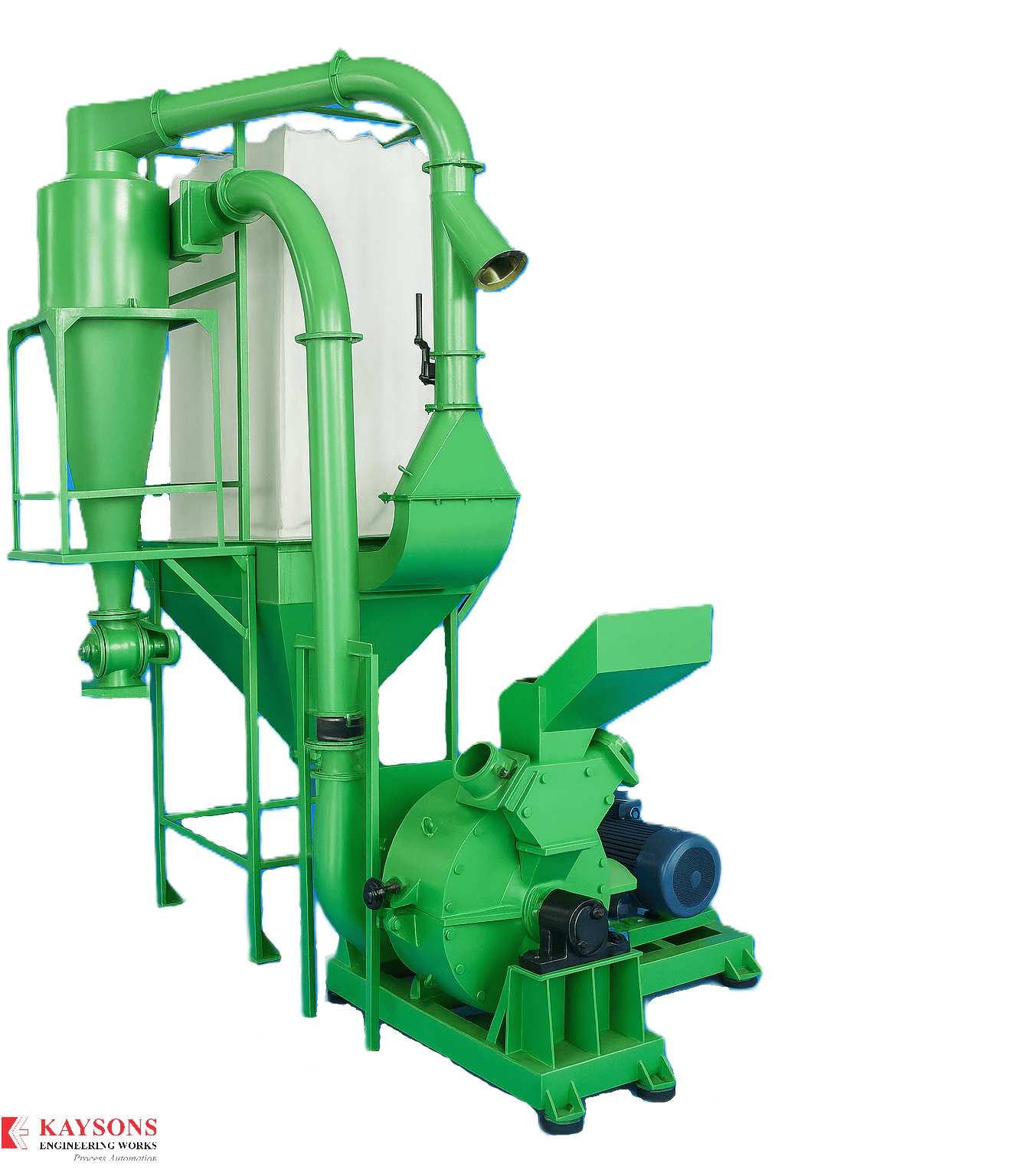

Screenless hammer mill pulverizer with cyclone separator and bag filter — high-speed grinding of crude fibre and tea blend to fine mesh, with integrated dust collection system.

KP-15
Model
40 HP
Motor
500 kg/hr
Max Capacity
Screenless
Mill Type

Product Overview

High-speed screenless hammer mill for tea fibre and agricultural material pulverizing

⚙️

Description

The Kaysons KP-15 Pulverizer is a screenless hammer mill designed for high-speed grinding of 100% crude fibre or a mixture of fibre and tea. The mill operates at 3000–4000 RPM with 24 hammers (beaters) in a 24" grinding chamber.

The system includes a cyclone separator and bag filter for complete dust collection, producing a fine product with 95% passing through 60 mesh. Compact footprint with self-contained integrated structure.

📐

Technical Specifications

Mill Category Screenless
Model Type KP-15
Grinding Chamber 24" (600 mm)
Hammers (Beaters) 24 Nos.
Electric Motor 40 HP
RPM of Mill 3000 – 4000
Capacity 320 – 500 kg/hr
Max. Feed Size 50 mm
Fineness Range 95% through 60 mesh
Space Required 12' × 12' × 14' Ht.
✅

Key Features

  • Screenless mill — no screen clogging Screenless
  • Handles 100% crude fibre or fibre + tea blend
  • 24 hammers for aggressive high-speed grinding
  • Integrated cyclone separator for product collection
  • Bag filter for complete dust containment
  • 95% fineness through 60 mesh — consistent output
  • Compact self-contained unit — low space requirement
