Product Overview

Three specialist sifting room machines for complete grade separation, fibre removal, and impurity cleaning in orthodox tea and agro-processing operations.Complete sifting room equipment range — Fibromat, Mydleton, and Rotary Sieve — engineered for precise grade separation, fibre extraction, and impurity removal in tea and agro-processing factories.

🔩

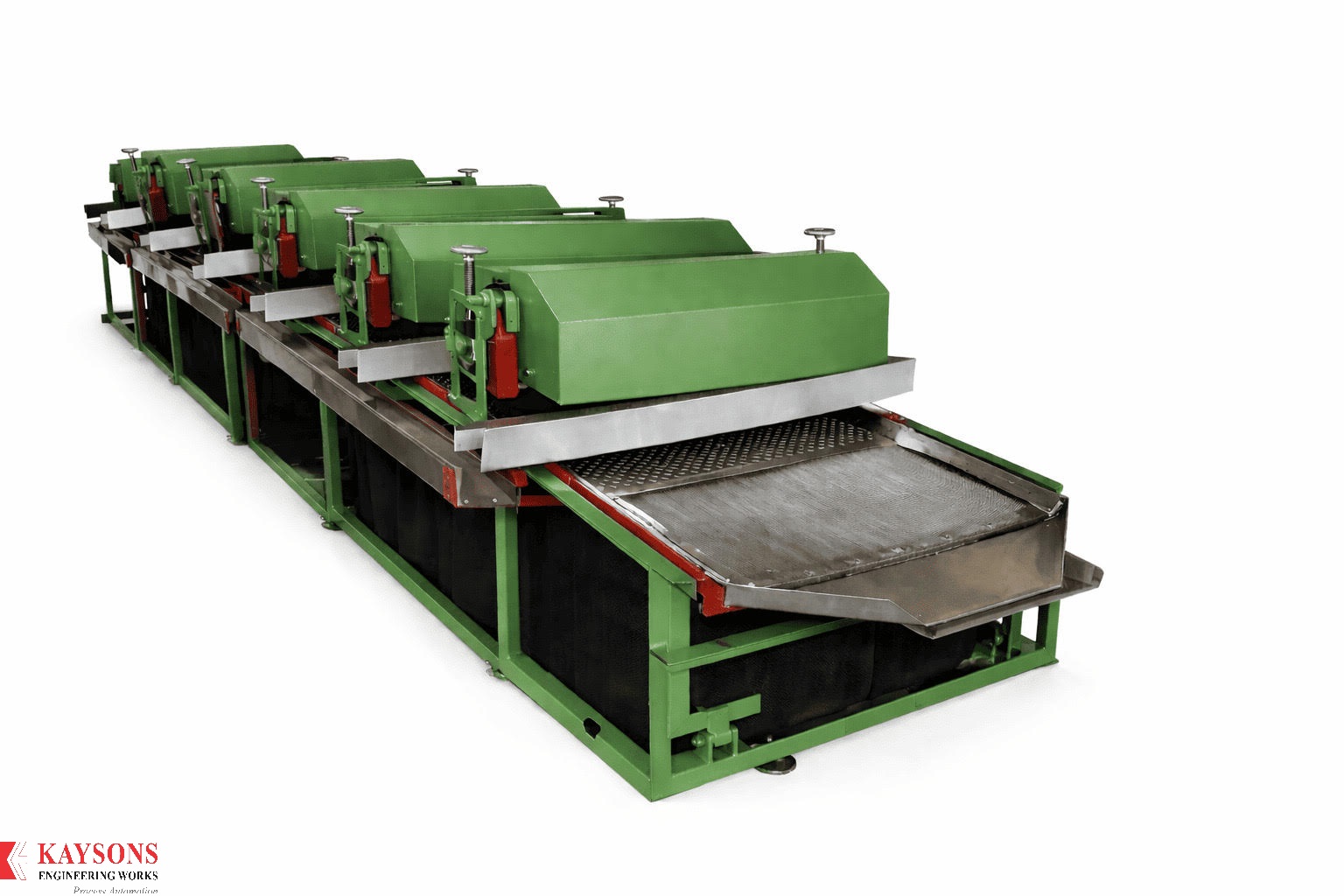

Fibromat

A multi-roller fibre separation machine fitted with 4 rollers of 36"/48" size and 30 cm diameter. Green-painted MS frame with adjustable pressure rollers and mesh belt conveyor for continuous feed and thorough stalk and fibre extraction from made tea.

  • Roller size — 36" / 48" 36"/48"
  • Number of rollers — 4 Nos 4 Nos
  • Roller diameter — 30 cm
  • Power — 2 HP, 440 V, 3-phase AC 2 HP
  • Mesh belt conveyor — continuous feed
  • Adjustable roller pressure via screw mechanism
⚙️

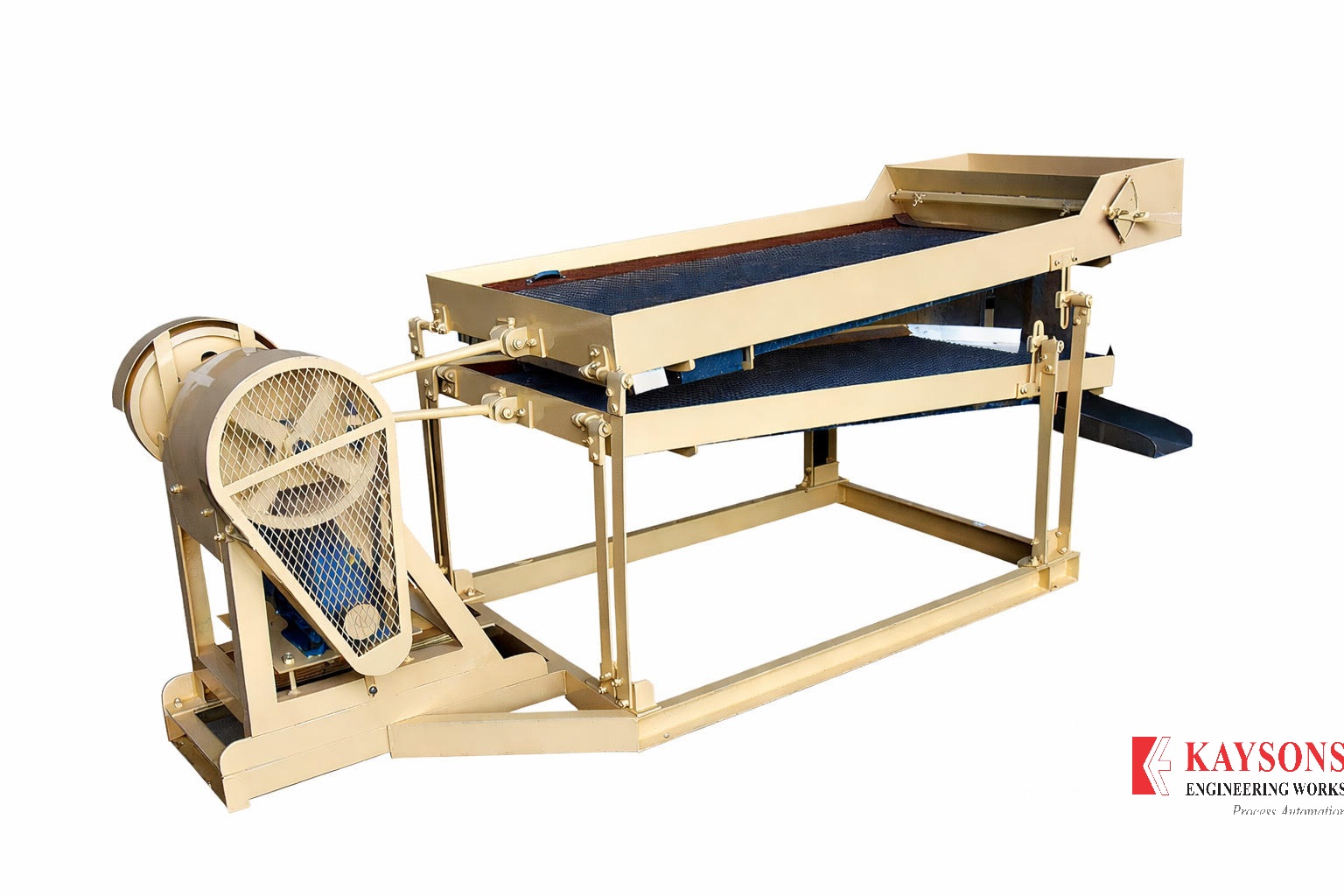

Mydleton

Eccentric flywheel-driven Mydleton with twin mesh deck screens for precise particle size separation. The MS frame carries two independent sieve decks with adjustable inclination, delivering consistent grading across all orthodox and CTC made tea grades.

  • Drive — eccentric flywheel mechanism
  • Sieve decks — twin mesh screen decks Twin Deck
  • Frame — MS fabricated, painted
  • Adjustable screen angle for grade control
  • Multiple grade discharge outlets
  • Suitable for all orthodox and CTC grades
🌬️

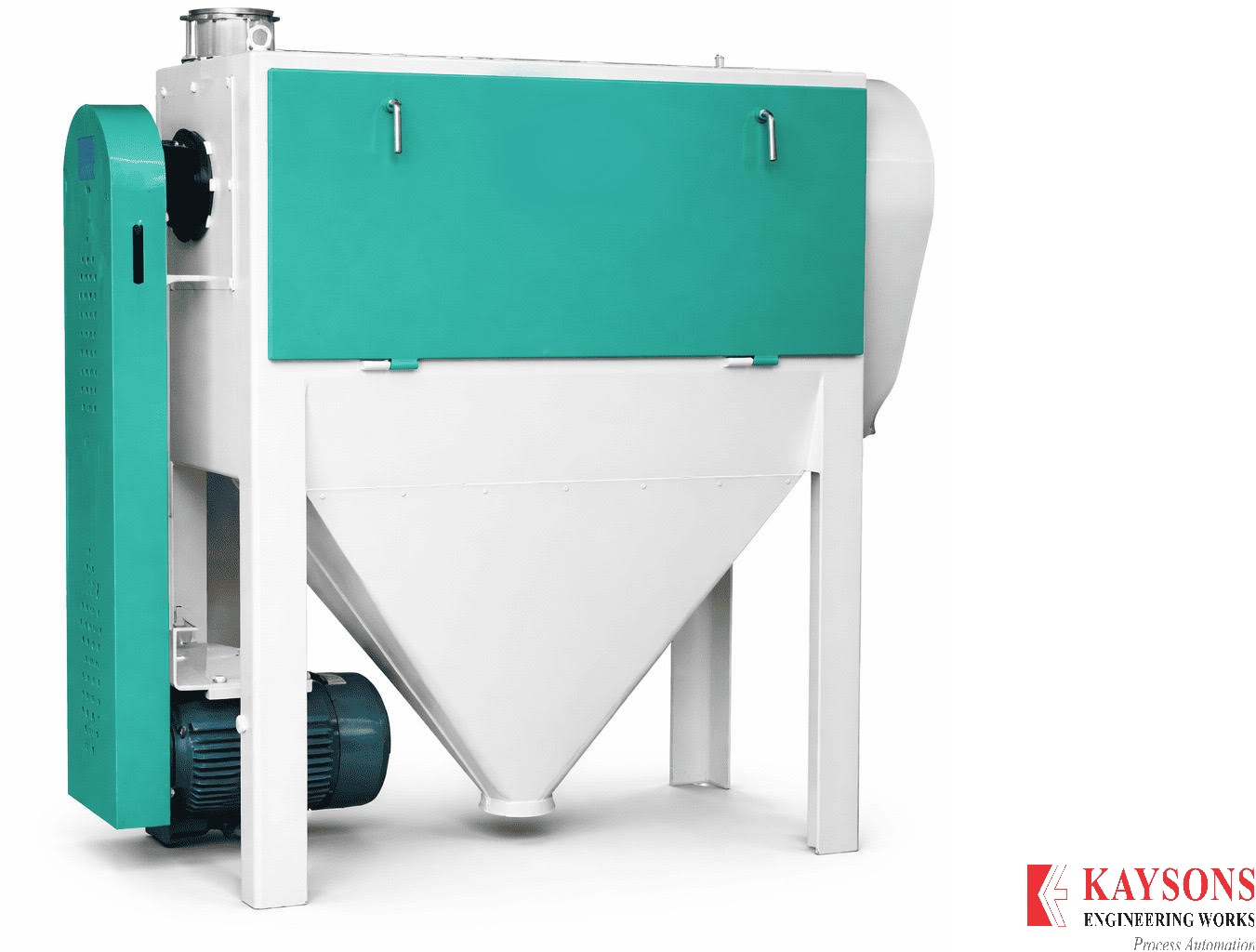

Rotary Sivev

A heavy-duty Rotary Sivev combining a conical discharge hopper with an integrated bucket elevator and centrifugal fan unit. The teal and white MS construction separates light impurities, dust, and chaff pneumatically, delivering clean, graded product to the discharge hopper.

  • Type — aspirator / pneumatic grain cleaner
  • Discharge — conical hopper, MS fabricated
  • Elevator — integrated bucket elevator Bucket Elev.
  • Fan — centrifugal blower unit
  • Frame — MS with teal painted panels
  • Contact surfaces — food-grade compliant

Equipping Your Sifting Room?

Contact our team for Fibromat, vibratory sieve, and grain cleaner specifications, supply & installation.
