Description

The Kaysons Five Grade Sorter is a Trinick-type vibratory sorting machine that separates made tea into five distinct grade outputs in a single pass. Twin flat-bed sorting decks with SS mesh screens handle high-volume throughput, while the multi-deck vibratory sifter further classifies dust grades with precision.

The feed hopper with chain and sprocket drive ensures a uniform, controlled feed rate throughout the sorting cycle.

Specification

• Type — 5-grade Trinick Sorter Trinick
• Wire mesh screens — 5 Nos 5 Nos
• Mesh No. — 50, 40, 30, 24 & 20 Dust Grades
• Feed hopper — with chain & sprocket drive
• Motor — 2 HP, 440 V, 3-phase AC 2 HP
• Frame — MS fabricated, painted
• Screen decks — SS mesh, flat-bed type
• Drive — vibratory eccentric mechanism

Key Features

• 5 grade outputs in a single pass 5 Grades

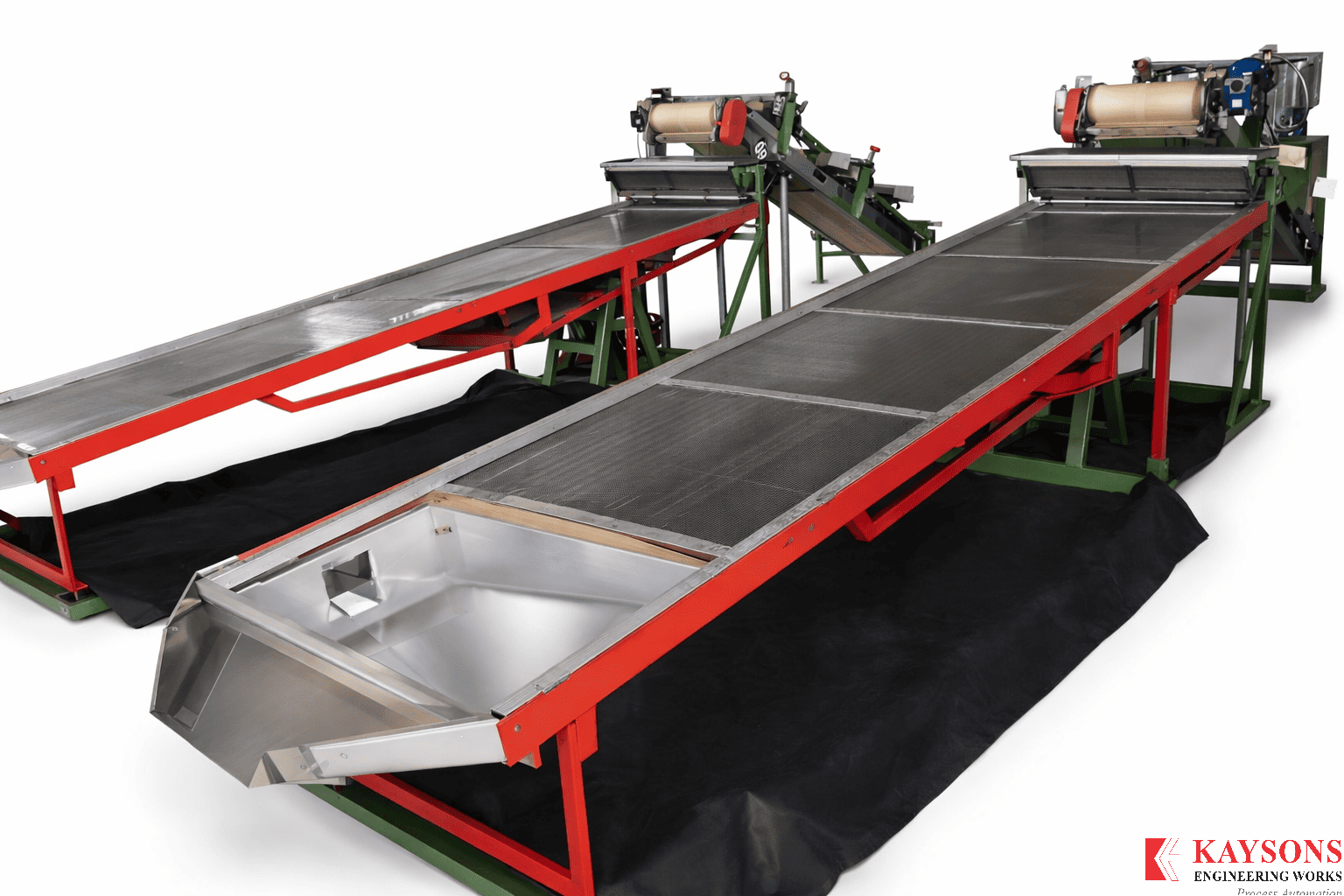

• Twin flat-bed SS mesh decks — high throughput

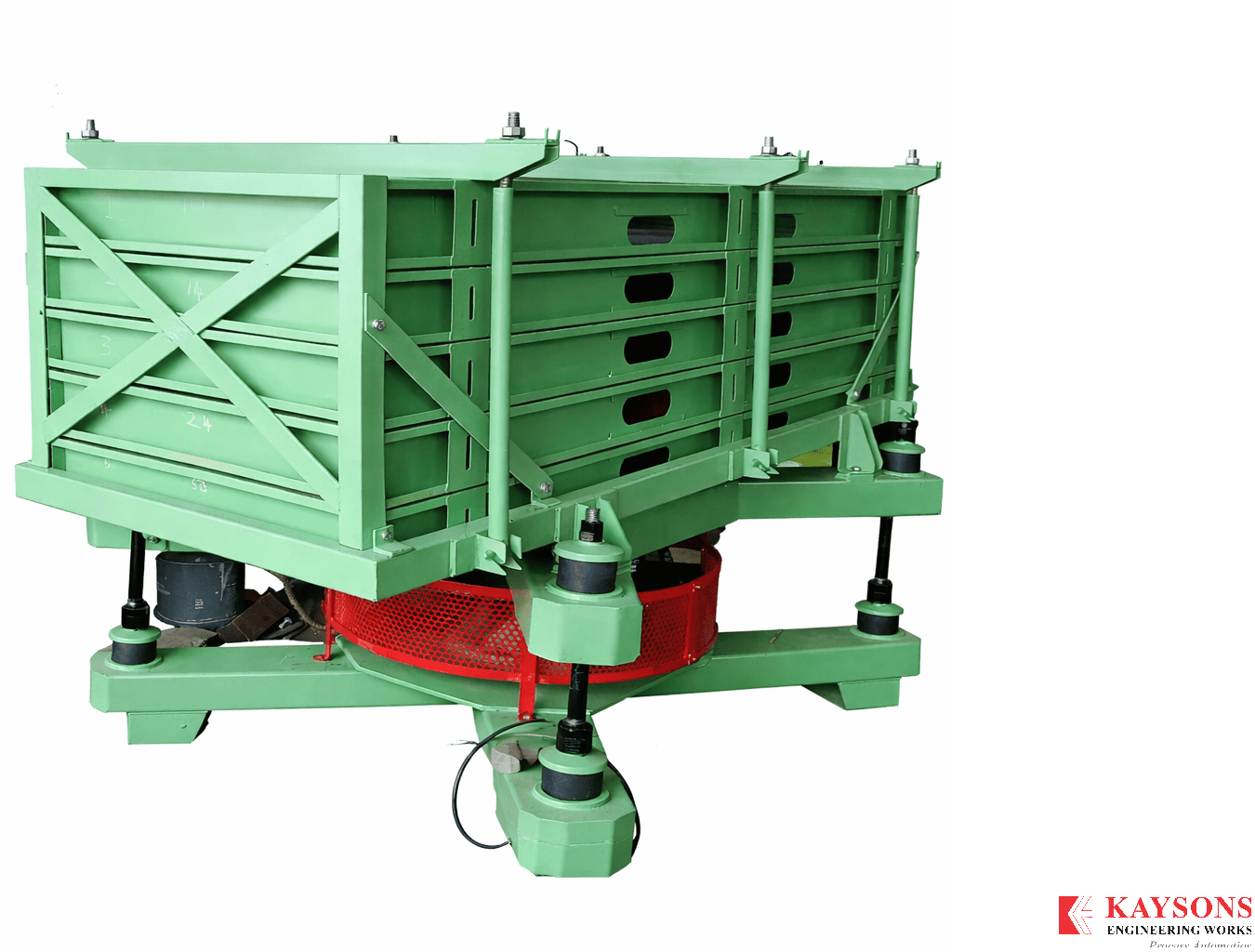

• Multi-deck vibratory sifter for dust grades
• Chain & sprocket feed hopper — uniform feed rate
• Mesh No. 50 to 20 — full dust grade range
• Vibratory eccentric drive — consistent screening
• MS fabricated frame — robust factory construction
• Suitable for orthodox and CTC made tea grades
