LEAF SHREDDER — SINGLE / TWIN

Leaf Shredder

21" × 36"
Drum Size
2400
RPM
8 Sets
Alloy Blades
SKF
Bearings

Product Overview

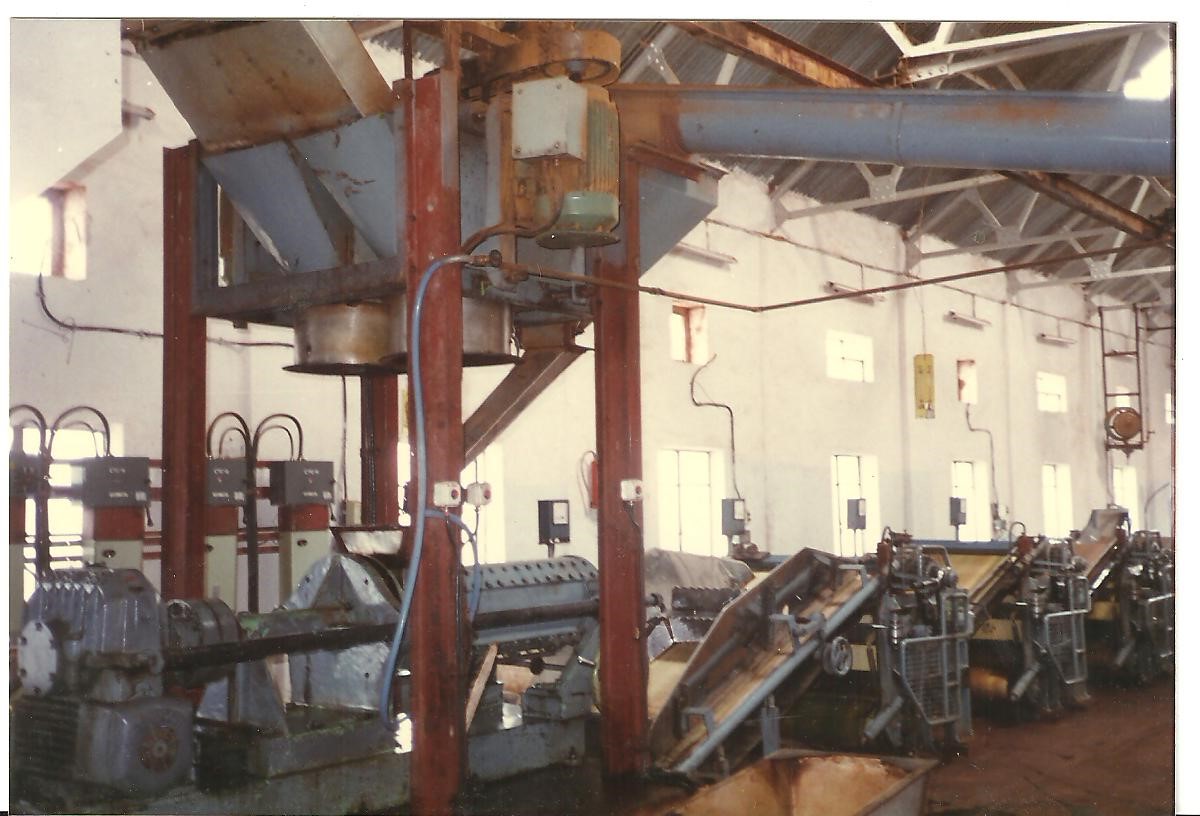

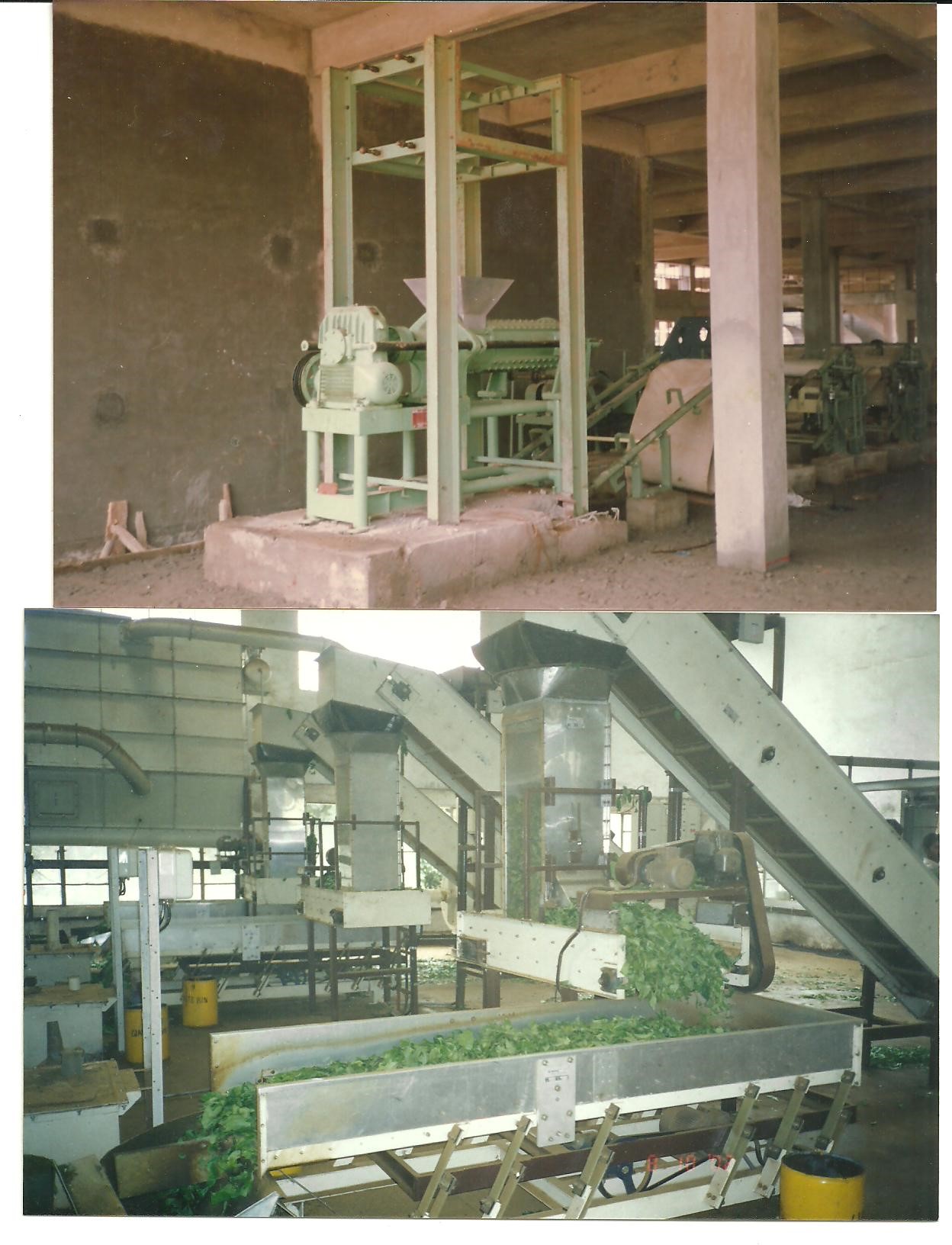

Single and twin leaf shredder units for CTC tea manufacture — precise shredding before rotorvane processing. 21" × 36" MS/SS barrel leaf shredder with EN 8 shaft, SKF taper roller bearings and 8 sets of floating alloy steel blades — available as single or twin units at 2400 RPM.

🍃

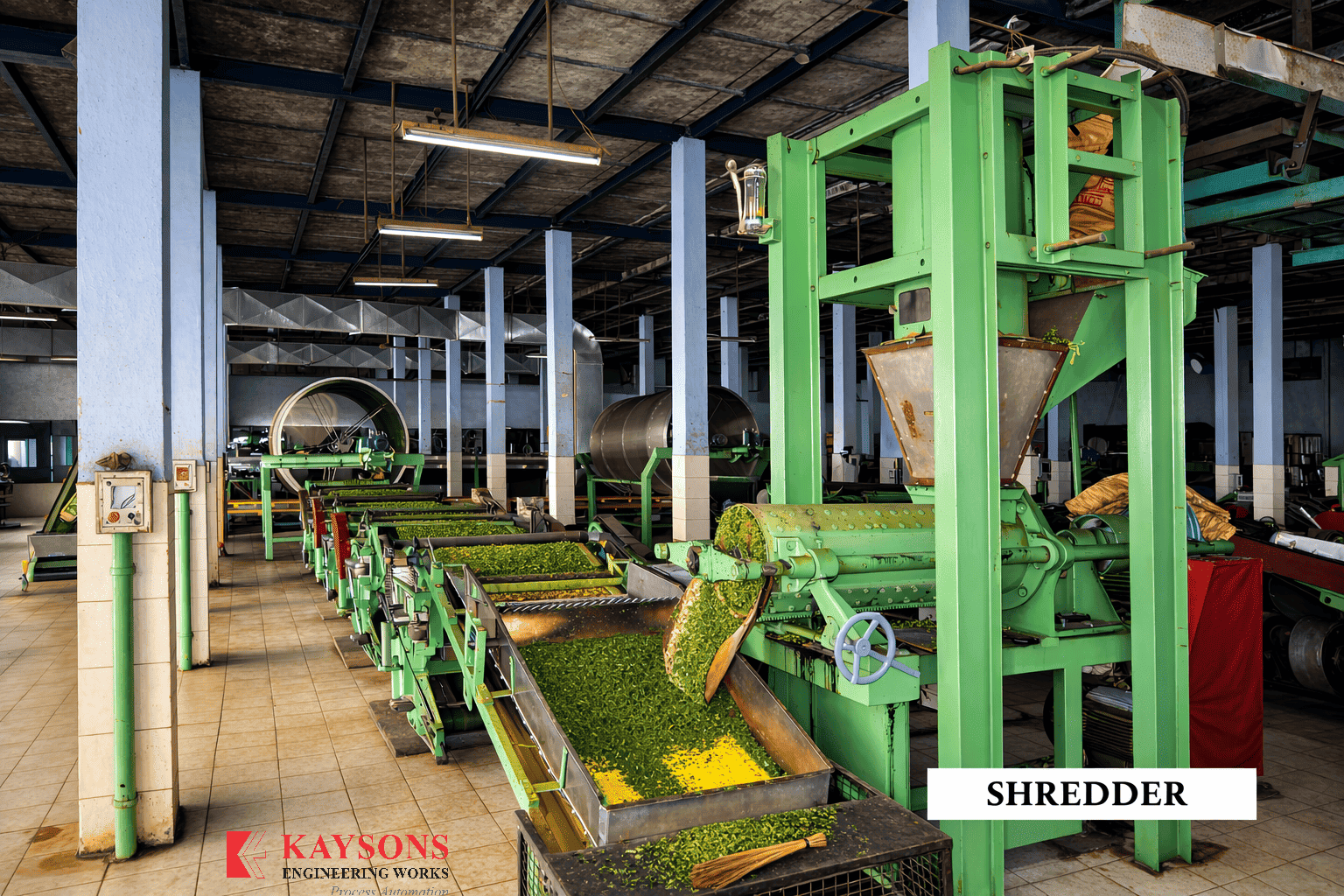

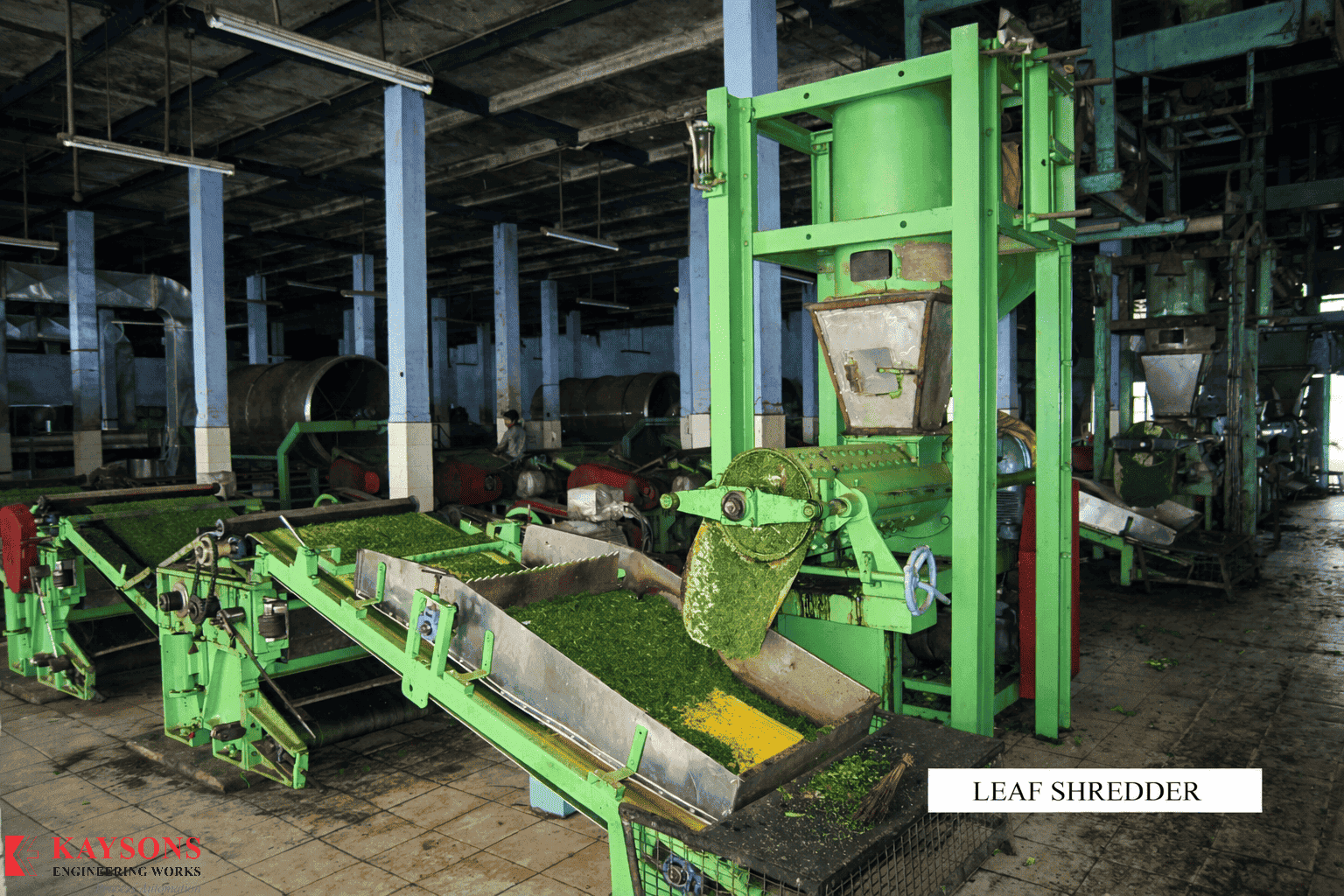

Single Leaf Shredder

  • Top barrel — MS 3.15 mm plate, 600 mm long MS
  • Bottom barrel — SS 3.15 mm plate, 300 mm long SS
  • Size — 21 inch dia × 36 inch long 21" × 36"
  • Bearing housing — Seamless pipe with SKF taper roller bearings SKF
  • Shaft — EN 8 with 8 sets of alloy steel blades, floating type for easy removal & sharpening
  • Spindle speed — 2400 RPM 2400 RPM
  • Motor — 20 HP, 1440 RPM (excluded)
⚙️

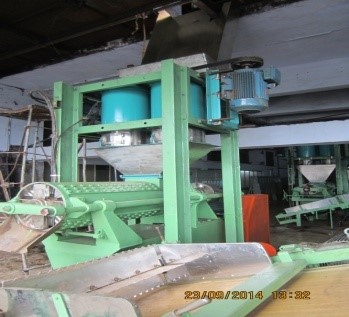

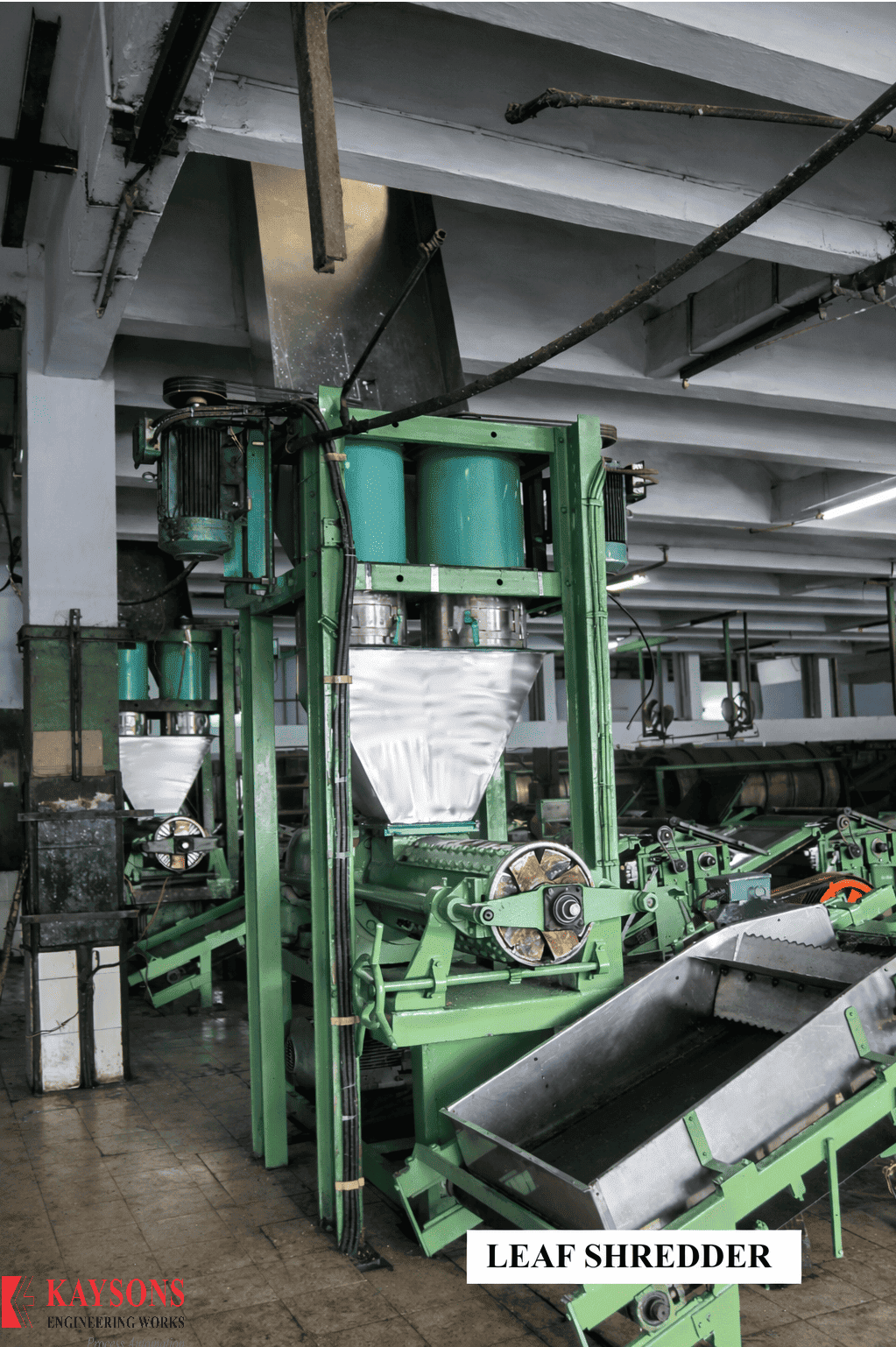

Twin Leaf Shredder

  • Top barrel — MS 3.15 mm plate, 600 mm long MS
  • Bottom barrel — SS 3.15 mm plate, 300 mm long SS
  • Size — 21 inch dia × 36 inch long 21" × 36"
  • Bearing housing — Seamless pipe with SKF taper roller bearings SKF
  • Shaft — EN 8 with 8 sets of alloy steel blades, floating type
  • Spindle speed — 2400 RPM 2400 RPM
  • Motor — 20 HP, 1440 RPM × 2 Nos (excluded)
  • Feed chutes — MS; discharge hopper — SS 304G sheet
✅

Stand & Key Features

  • Iron stand — I-Beam 200 with Channel 100 & angular supports I-Beam
  • Motor base plate arrangement on stand
  • Floating alloy steel blades — easy removal & field sharpening
  • SKF taper roller bearings in seamless pipe housing
  • SS 304G discharge hopper from shredder to rotorvane
  • Erection & commissioning support available
  • Available as single or twin unit configuration
